VLM Smart Vertical Storage

JOSAM SHELVING x VLM SMART STORAGE

SMART VERTICAL STORAGE JOSAM Automation & Smart Solutions

Vertical Lift Module — Redefining Your Space Efficiency

Made in Taiwan｜Modular Design｜Single Tray Load Capacity up to 990 kg

Three Core Advantages

Space Saving

Through intelligent equipment layout and process integration, we increase production density within limited floor space, effectively optimizing space utilization.

Efficiency Improvement

By integrating automation with Industry 4.0 technologies, we achieve seamless production line integration, energy optimization, and precise process control.

Smart Positioning

Easily detect inventory items via QR code scanning, automatically locate and retrieve the required materials. Enhances picking efficiency, minimizes manual searching and errors, and greatly optimizes operations.

Intelligent Modular Design for Seamless Integration of Your Storage Operations

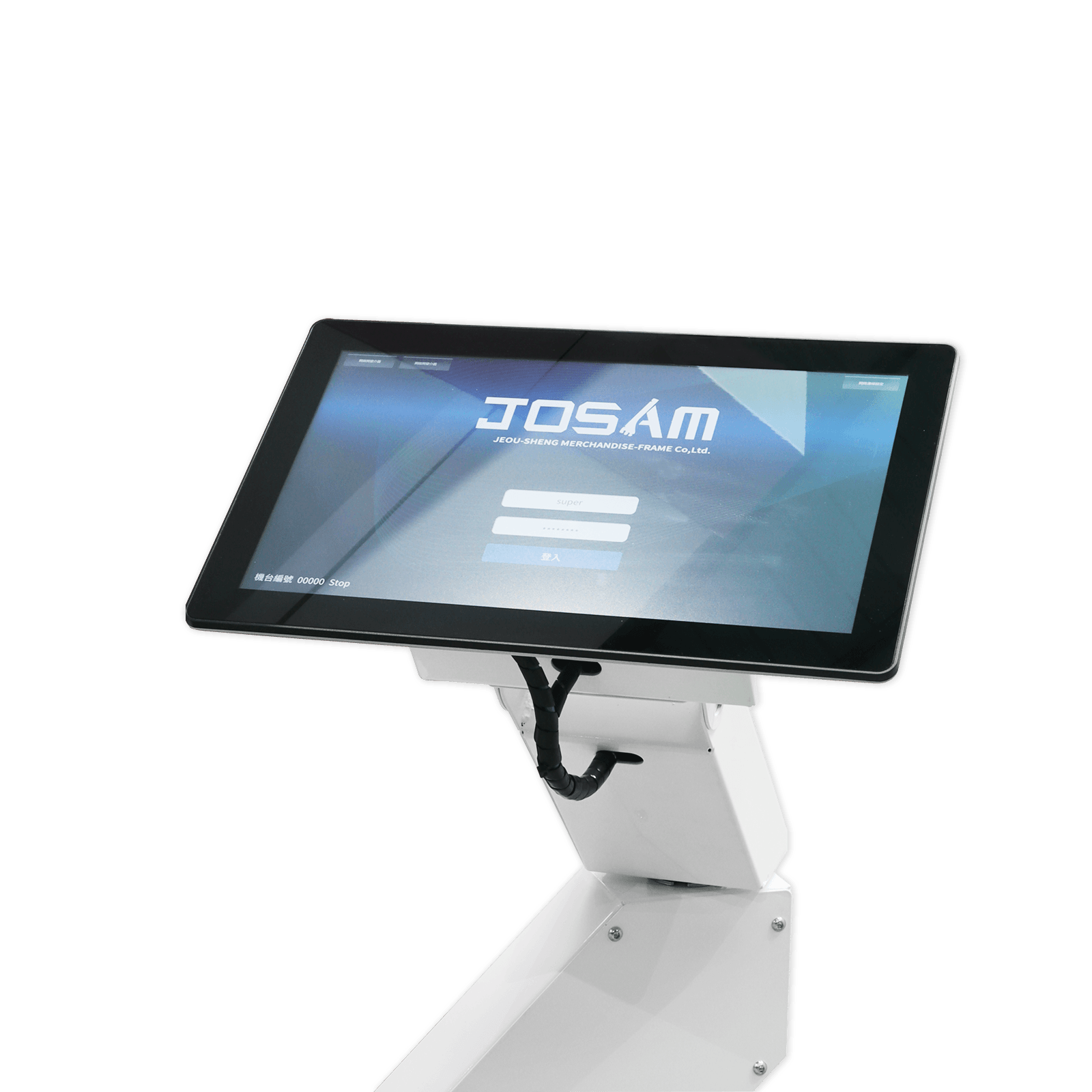

Built-in 15.6-inch touchscreen interface for quick material search and retrieval, supporting both Chinese and English operation.

Technical Specifications

Specification Item	Description
Transfer Speed	Up to 15 m/min
Rated Voltage	3 Ø 4W AC 220V / 380V, 60Hz
Equipment Dimensions	Each model corresponds to a different tray width, Height 3 m to 6 m (modular, adjustable)
Operator Interface	15.6-inch intelligent touchscreen console (Copilot) with quick search function
Number of Bays	Supports up to 3 bays, all positioned above ground on the same side
Types of Bay	Internal or external bays available, with single or dual delivery options

Available in multiple sizes and load capacities to meet diverse storage needs

Supports internal or external bays, with single or dual tray delivery options. Suitable for manufacturing, logistics, retail, and various other industries.

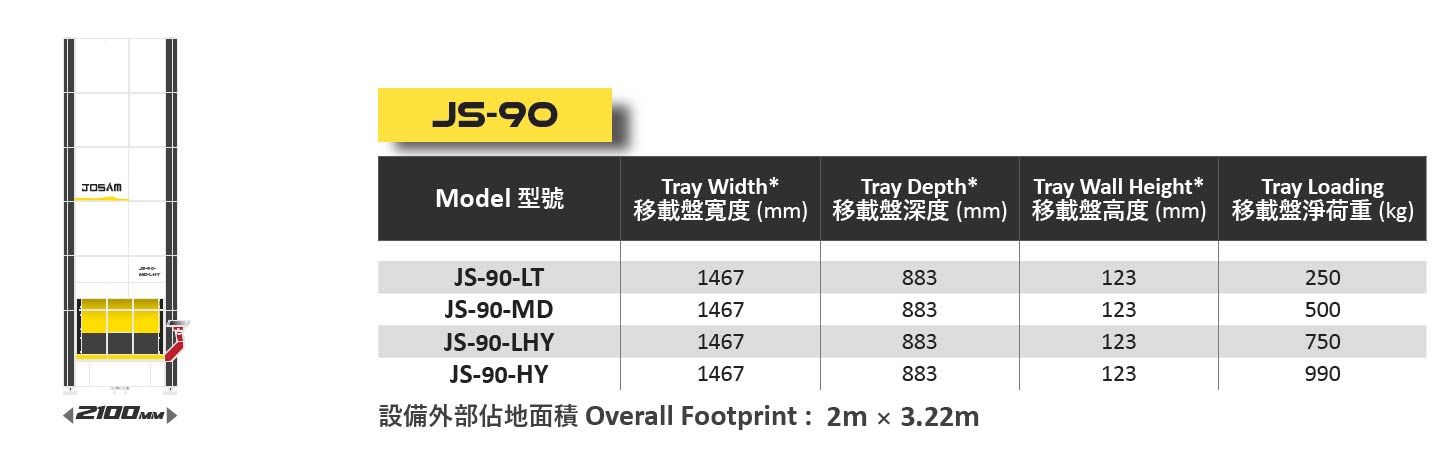

JS-90 Series：Transfer tray width of 1467 mm, ideal for storing small parts and tools.

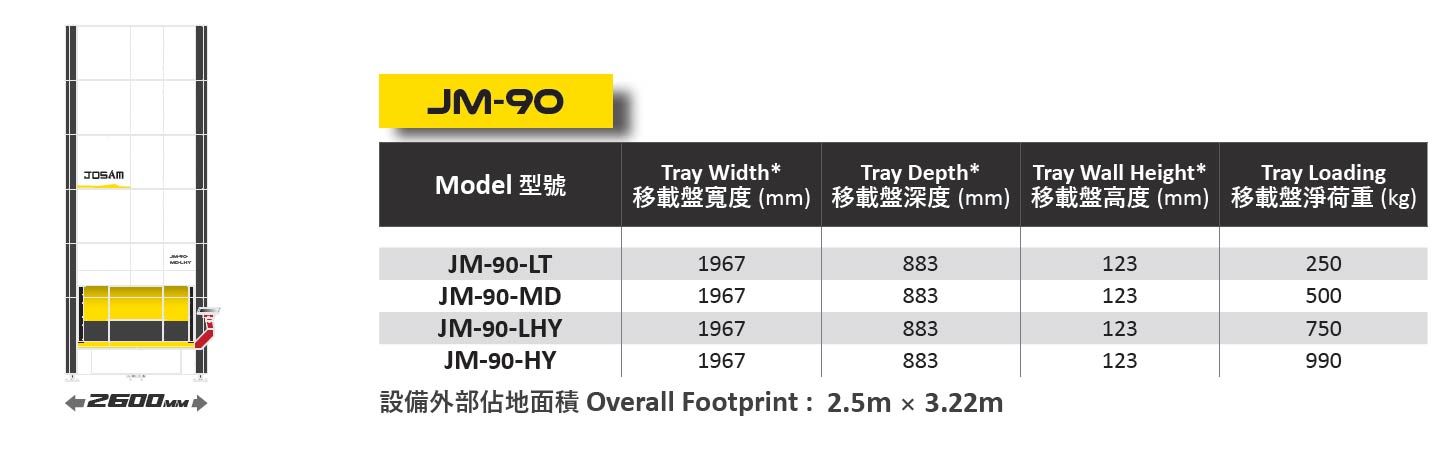

JM-90 Series：Transfer tray width of 1967 mm, with a load capacity of up to 990 kg.

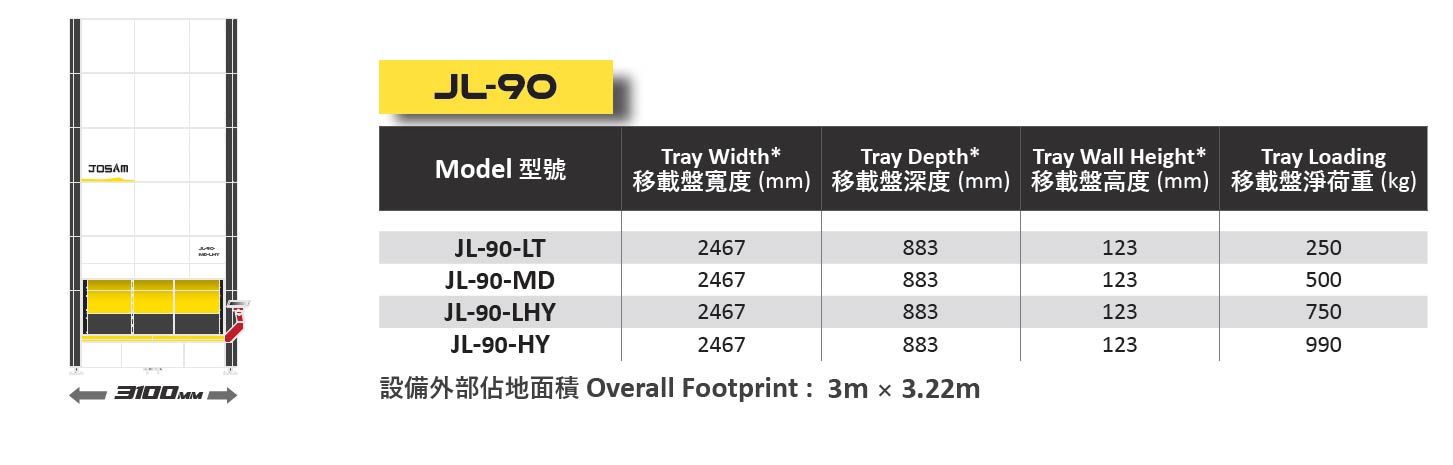

JL-90 Series：Transfer tray width of 2467 mm, suitable for medium to large-sized materials.

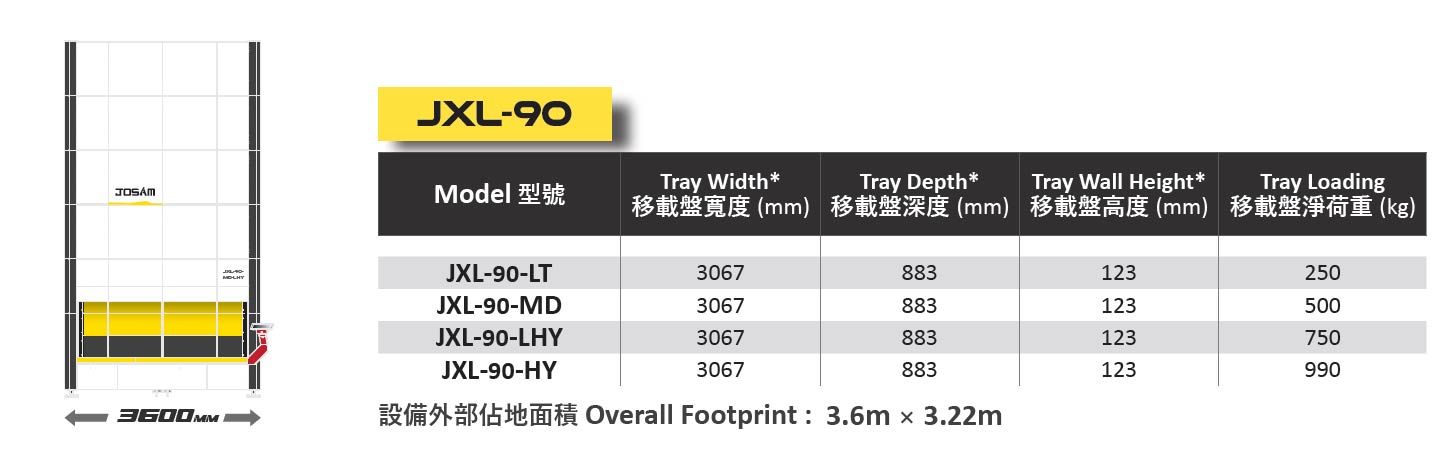

JXL-90 Series：Transfer tray width of 3067 mm, ideal for industrial production line storage.

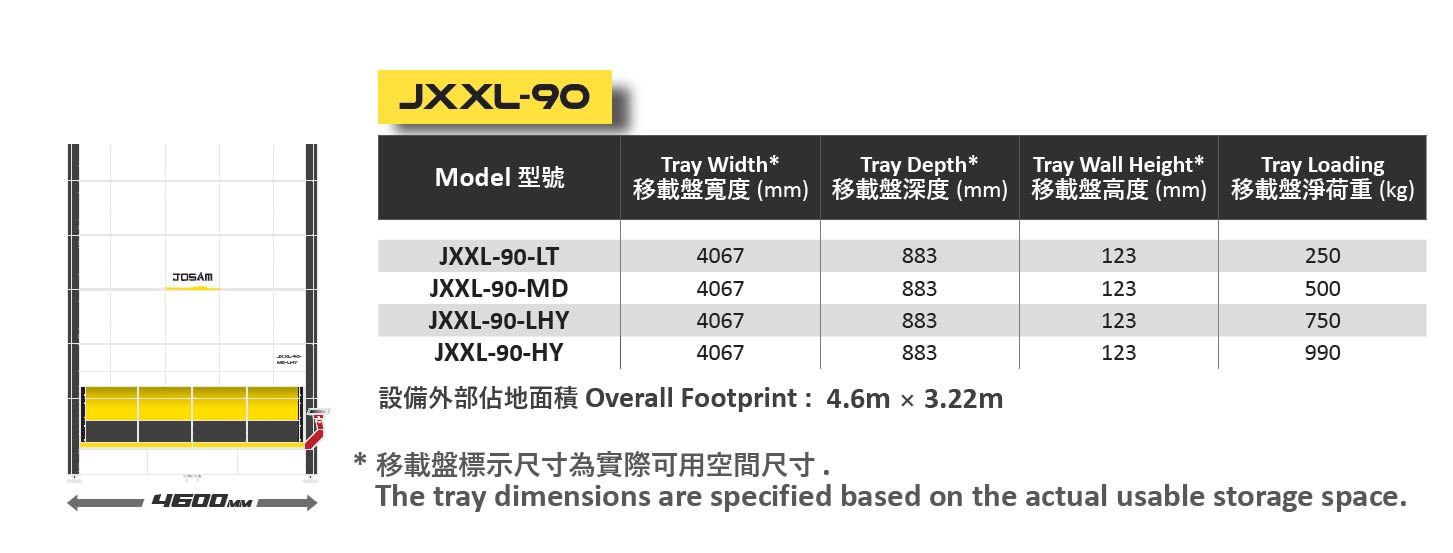

JXXL-90 Series：Transfer tray width of 4067 mm, maximizing single retrieval capacity

Application Cases & Customer Testimonials

Electronics Parts Warehouse (Medium-Sized Manufacturing):We have thousands of SKUs, and searching for parts often takes half a day, with the risk of picking the wrong items.

👨‍💻:After implementing the Smart Vertical Storage system, engineers can search the part number via Copilot, and the correct tray is automatically delivered to the access point within 10–20 seconds. Storage errors have been reduced to nearly zero, and operational efficiency has tripled.

Automotive Aftermarket Parts CenterSome bumpers and tires are too large to store properly, and retrieving them often requires two or three people, which is exhausting.

👨‍💻:We recommend using the JXXL Series large trays with an external bay, allowing you to store large parts while enabling single-person operation. The modular design reduces handling risks and enhances operational safety.

Department Store Stockroom (Retail Industry):We have a huge amount of seasonal inventory, and there’s simply not enough space in the store. Staff often can’t find the new stock.

👨‍💻:Smart Vertical Storage can be installed in the backroom, consolidating inventory and saving up to 85% of space. With the Copilot system, staff can call up products instantly—no more rummaging through stock or picking the wrong size—resulting in higher on-site efficiency and shorter customer wait times.

Tech Industry Material Storage (Cleanroom Application):We are extremely sensitive to dust, and traditional storage systems are simply not an option for us.

👨‍💻:We offer an enclosed modular storage system, with optional electrostatic filtration modules and vibration-reduction designs for cleanroom environments, meeting the strict requirements for high-cleanliness material storage and handling.

Design Company Sample Storage (Design / Material Industry):We often need to present fabric and leather samples to clients, but over time they discolor, and sometimes we can’t even find them—it’s frustrating.

👨‍💻:We help you categorize and store samples in trays, equipped with LED indicators and quick retrieval functions, while also recording each designer’s access history. This allows you to combine display and material preparation in one solution, balancing efficiency with aesthetics.
